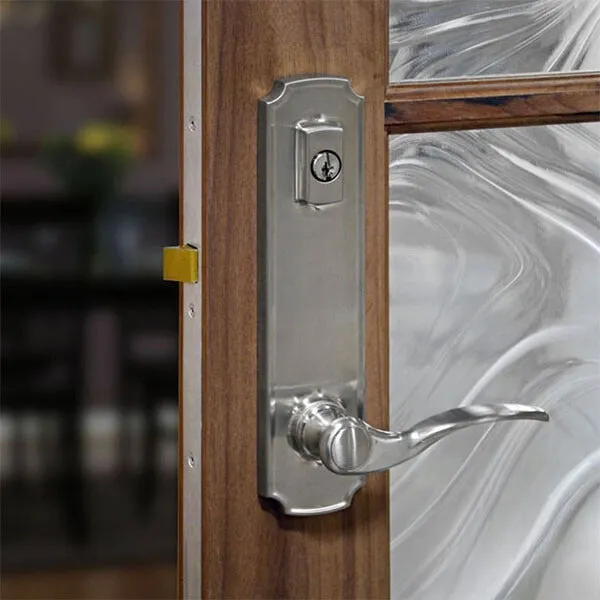

Trilennium Eclipse 3-Point door lock with 6 inch handle to key spacing - See additional Images
The Trilennium is a 3 point lock system that has triple latches that extend and become rigid dead bolts.
Designed especially for W & F Hardware, will not work on other Multipoint Locks
Used by Peachtree, Pella and others.

Function: Active Door with Key lock
Door Thickness: Standard 1-3/4 inch (45mm)
*For 2-1/4 inch doors, order 2-1/4 inch conversion pack
Key Cylinder: Standard Weiser - Special Order, Kwikset Smart Key or Schlage SC1 5 pin

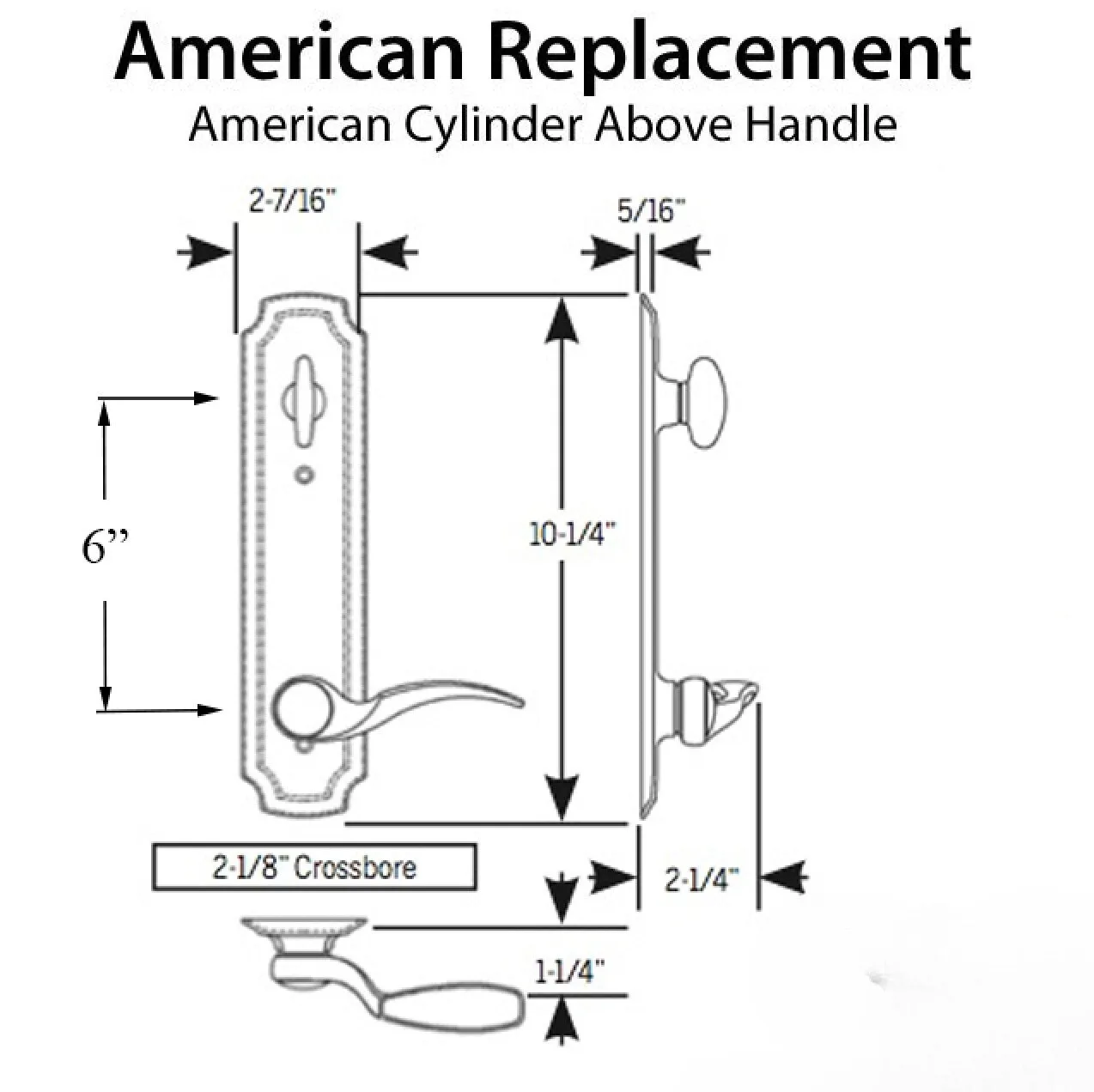

Escutcheon Plate Width: 2-7/16 inch (61.91mm)
Escutcheon Plate Length: 10-1/4 inch (260.35mm)

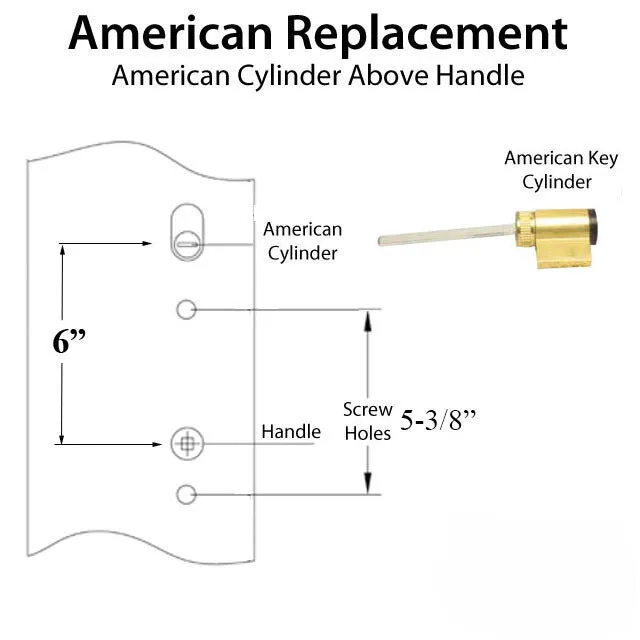

Handle to Cylinder Centers: 6 inch (152.4mm)
Installation Screw Hole Spacing: 5-3/8 inch (136mm)

Keyway Options:
Schlage C
Weiser

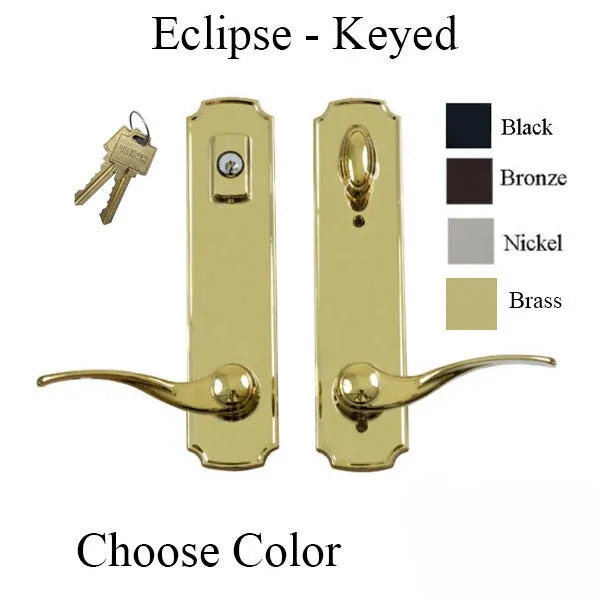

Color / Finish:
Polished Brass US3
Satin Nickel US15
Black Powder Coat US5P

Special Order Finishes: (TriLast PVD High Performance Finish)
Lifetime Brushed Satin Nickel
Victorian Bronze

Note 1: This is the interior and exterior handles and plates as shown, does NOT include Strike Plates or mortise lock in door. Other parts are sold separately

Note 2: Standard bore on most W&F or Endura hardware is 1-11/16 inch. Some doors use a 2-1/8 inch bore. Most Multipoint lock handlesets are only 2 inches wide and will not cover the larger holes.

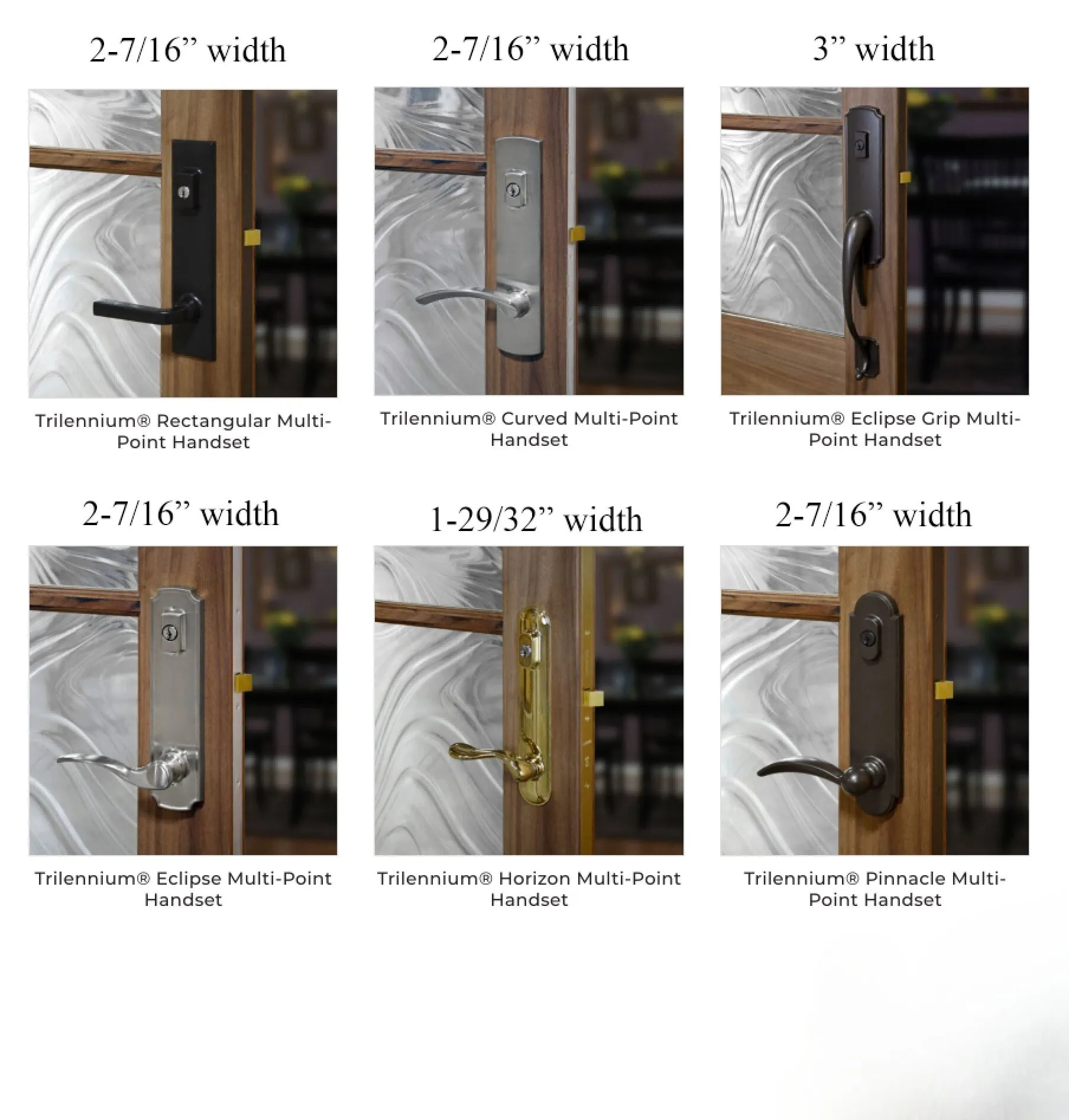

Handleset Trim for 2-1/8 inch Cross Bore: Pinnacle, Eclipse, Rectangular & Grip Hardware
Trim for 1-11/16 Cross Bore: The full W&F line including Horizon and Some Emtek with 2 inch wide plates.
